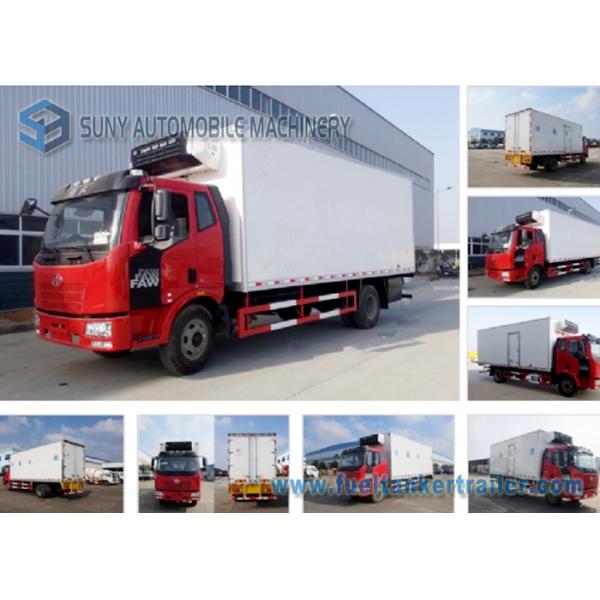

180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic

Product Categories
Hubei Suny Automobile And Machinery Co., Ltd
Contact Now

180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic

  • 1
  • 2
  • 3

Brand Name : SUNY

Model Number : CA1160

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 20,000 ~ 40,000 / Unit

Supply Ability : 500 Units / Month

Delivery Time : 15 ~ 20 working days

Packaging Details : After Waxing by Container , RO-RO , Bulk Freighter

Cargo Body Size : 5450*2400*2560 mm

Cargo Body Material : FRP inside & outside of the van, polyurethane as the insulation

Cargo body thickness : 80mm

Door : Single Rear Door , Optional Side Door

Temperature Range : -18C to 5°C

Engine : 139 KW / 180 HP

Displacement (lit) : 6.06

Number of gears : 6 Forward gears & 1 Reverse

Brake System : Ail braking

Tire : 10. 00R 20

Cabin : FAW J6 Half row , With A/C

Contact Now

180 HP FAW J6 4x2 Refrigerated Box Truck Load 10T Box Volume 30 Cubic

4x2 FAW Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -18°C to 5°C
Total capacity: approx. 8000 KG ~ 10000 KG ~ 12000kg ~ Max .15000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Brand-Series FAW
Product Name 4x2 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Half row , With A/C
Chassis standard configuration
Chassis model CA1160
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 8500*2500*3850
Cargo body dimensions (L×W×H) 5450*2400*2560
Wheel base 4700
Front / Rear track base 1914 / 1847
Front / Rear overhang 1400 / 2550
Weight data (kg) G.V.W 16000
Curb weight (chassis) 7570
Max payload 8000~ 15000
Whole vehicle
main performance		 Max. speed (km/h) 90
Max. slope of climb (%) 30
Engine Model BF6M2012-18E4
Maximum power 139 KW / 180 HP
Number of cylinders 4
Displacement (lit) 6.06
Engine Manufacturer FAW
Gear box Number of gears 6 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 5 / 10
Suspension Front / Rear Spring plate 10/12+8,13/12+8,12/12+8
Steering Wheel left/right hand drive LHD
Brake system Service brake Ail braking
Electric device Voltage (V) 24
Tire & Quantity 10. 00R 20 & 6+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 5450*2400*2560
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-500
Temperature Range Normal temperature,refrigeration temperature reached -18C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
  1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
    2.Refrigerators chosen brand from: South korean Hanya, HuaSu
  2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
    3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic
